CHN-110 P (single driver)

Description

The CHN110 P is a brand-new paper coned version of the CHN110 5 ¾ inch driver high fidelity multi-purpose design.

A versatile driver. It represents a new standard in driver design, combining cutting-edge technology with exceptional performance.

Bass Extension Excellence: The CHN110P goes beyond the capabilities of typical 5.5-inch to 6.5-inch mid-bass units. Its carefully optimized design delivered remarkable bass extension, making it ideal for larger enclosures.

Advanced Cone Design: Based on the shallow, wide-dispersion multiform cone concept, the CHN110P enhancement allows it to handle substantial low-frequency loads while maintaining fidelity.

Long-Stoke Suspension: The all-new long-stroke suspension system enhances low-frequency response. With an impressive air volume compliance of nearly 29 liters, it’s well-suited for demanding applications.

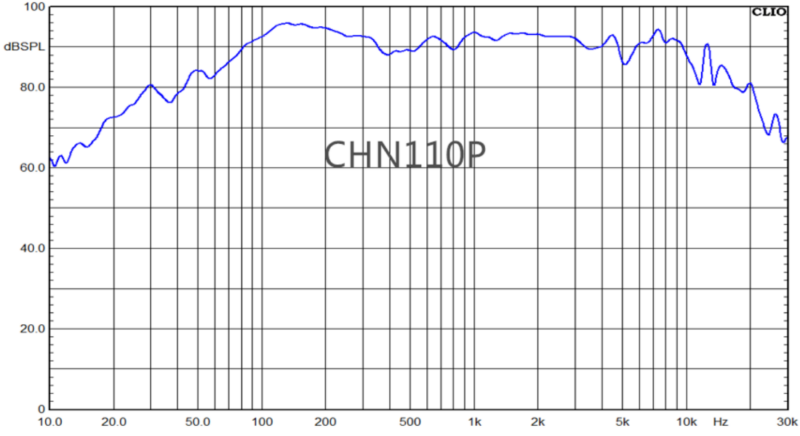

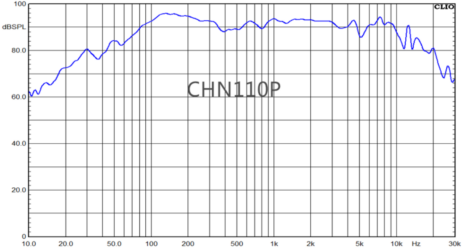

Low-Distortion Motor: Designed for medium Q, the CHN110P ensures minimal distortion. Its sensitivity exceeds 89dB 1m/w and maintains a smooth high frequency range up to 20KHz at +80dB.

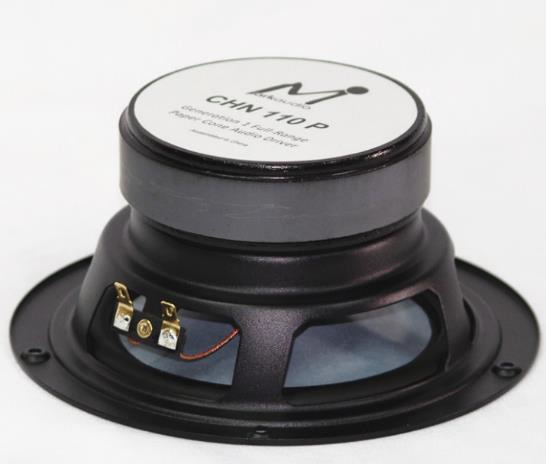

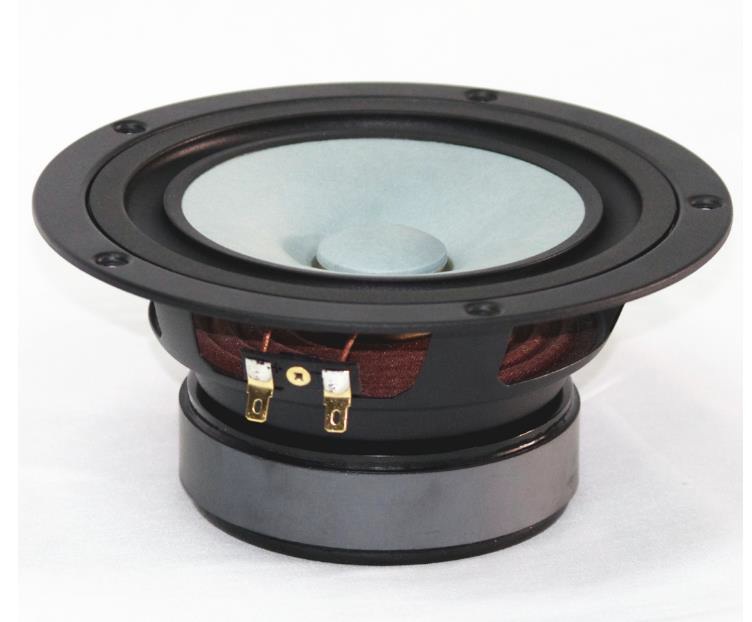

Easy Installation: The heavy-duty steel frame facilitates surface and recessed mounting, streamlining installation for custom builders.

Versatility Unleashed: Whether used as a high-performance full-range driver or a wide-range mid-bass with simple filtering, the CHN110P adapts to various enclosure types. From high-fidelity systems to home theatres and commercial A/V setups, it delivers excellence.

Markaudio’s commitment to quality engineering shines through in the CHN110P, offering accessible excellence for audio enthusiasts and professionals alike.
CHN110P

Here is a link to the Data sheet for you to download

A link to an enhanced data sheet for the metal coned CHN110 with some outline cabinet plans featured, most of these work fine with this driver

And a link to more detailed set of cabinet plans, they are the same plans as the outline plans on the enhanced data sheet with more detail.

FS: 45.6336 Hz
VAS: 28.7 L
RE: 6.3000 Ω
QMS: 2.1567
QES:0.508
QTS: 0.4111
B×l: 5.1.22
dBSPL: 89.322
SD: 0.0111m2
CMS: 1.6616
MMS: 7.3205g
RMS: 0.9732 WM
RMT: 5.1054 WM
MMD: 6.6566 g
h0: 0.52%
L1kHz : 0.1692 mH
L10kHz: 0.1111 mH
X Max 8mm 1 way
Pwr: 45watts Nom
