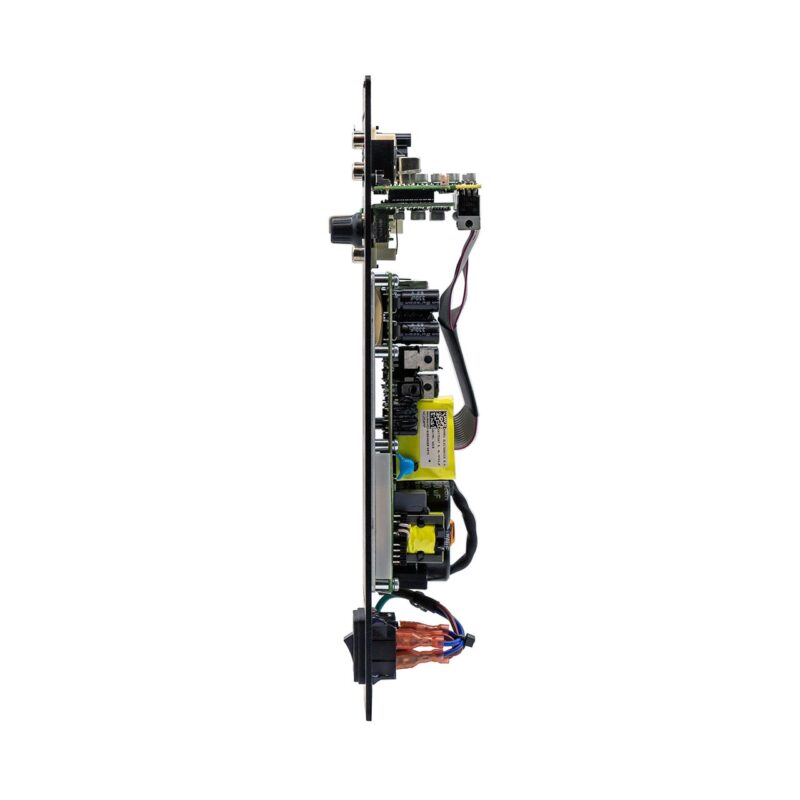

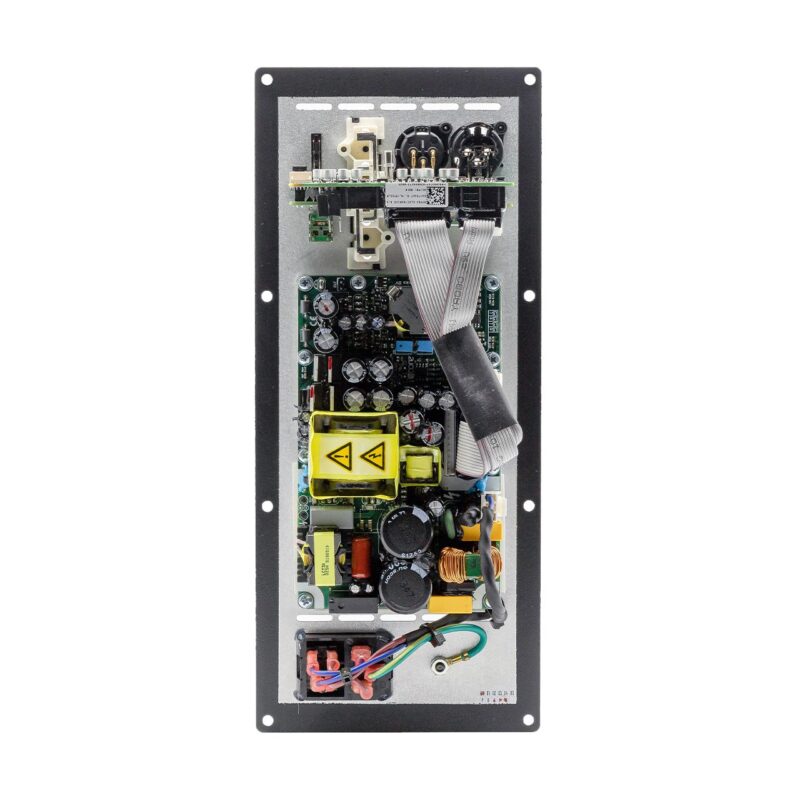

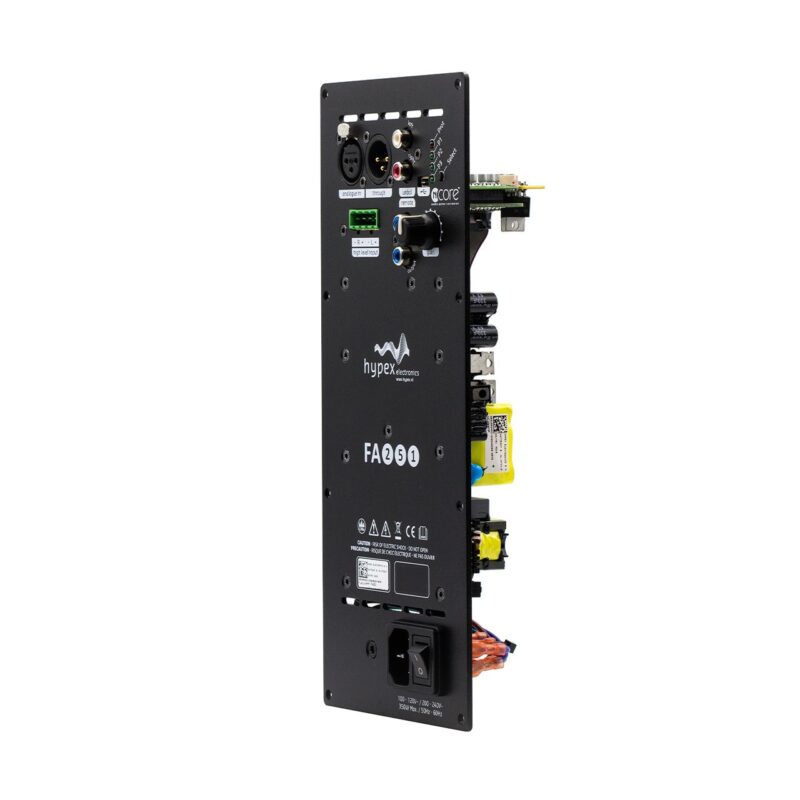

Hypex FusionAmp FA251

Description

The Hypex FA251 FusionAmp is  the mid power Hypex DSP plate amp, but is more than powerful enough for making small digital sub woofers. Using this 1 way plate amplifier you can form the basis of either DIY sub-woofer or a self powered speaker for the best active speakers for your home/cinema/studio or small gig. A digital input plate amp like this allows you to build an active digital speaker without  a preamp. A great way to upgrade your speakers to Hypex Ncore amplifier modules and get rid of the boxed amplifier from the audio rack at the same time.

The FA251 has one powerful 250 Wrms Ncore® Class-d amplifier with full DSP capabilities.

Dimensions: 280 * 120 x 55 mm

Weight: 725 gram

Specifications

Connections

• Analogue balanced XLR in and through
• Analogue unbalanced RCA input
• High level input
• USB 2.0 configuration interface

Features

• FIR filters now included 4500 taps for the input channel and 1500 taps per output channel
• 15 biquads per amplifier
• Three selectable presets for filters
• Source selection
• Signal detect
• Auto shutdown
• Clip protect
• Thermal protect
• Filter protection

What is included in the box:

• The FA251
• A printed copy of the user guide
• Speaker connection cables
• High-level input connector

.

Hypex Filter Design (HFD) is available for free download at the Hypex Website.

Take a look at this cool customer subwoofer project here
