Description

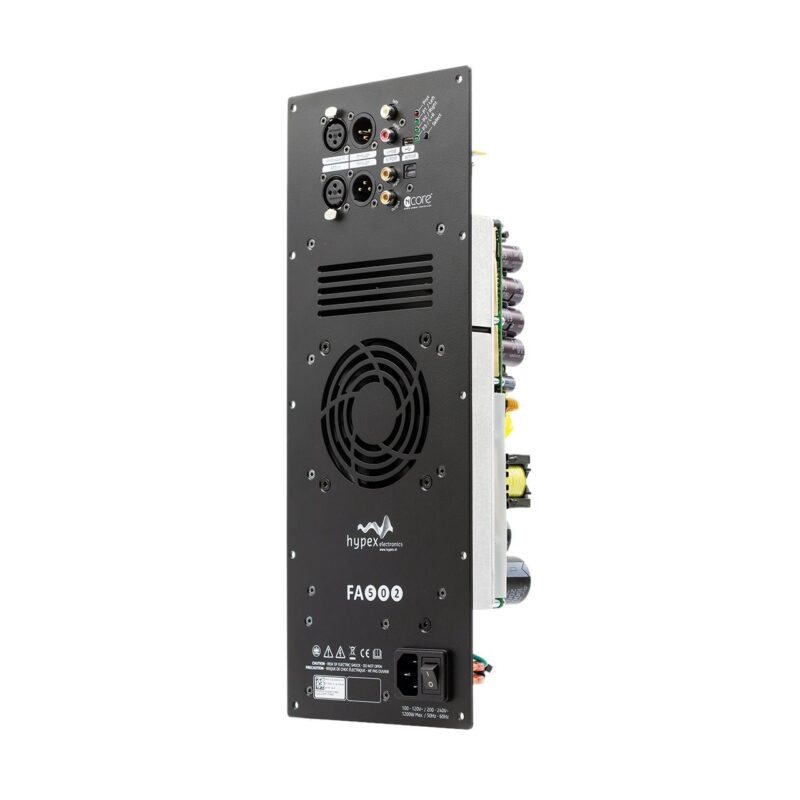

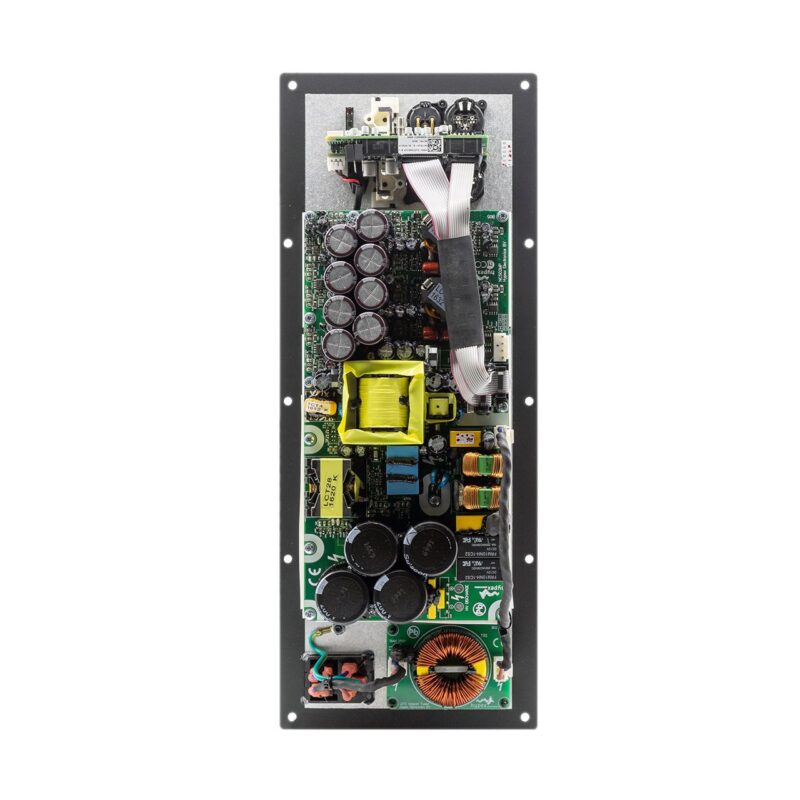

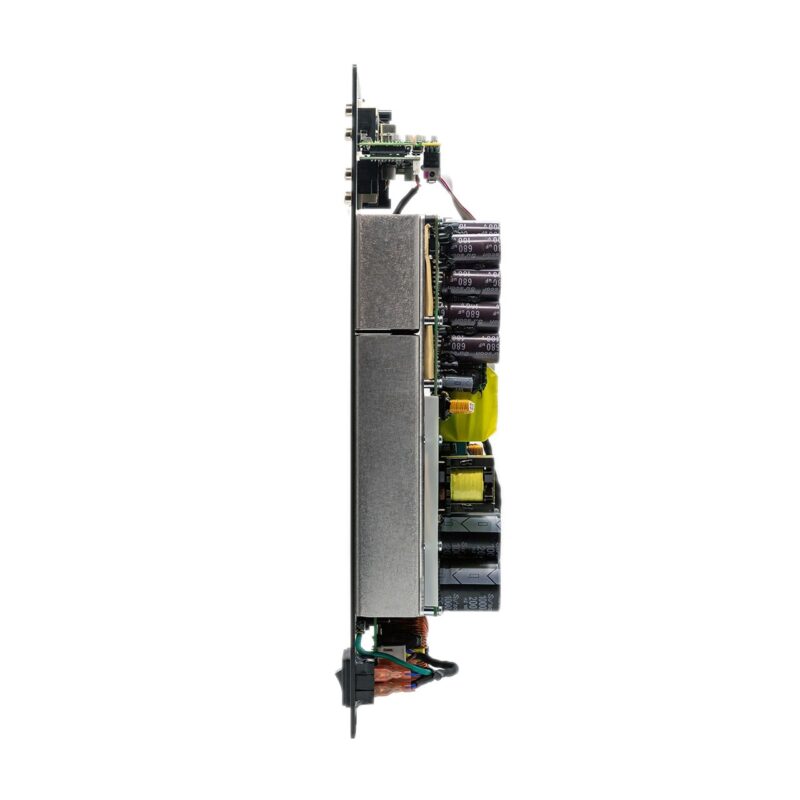

The Hypex FusionAmp FA502 is a powerhouse DSP‑enabled NCORE® plate amplifier designed for uncompromising active loudspeakers. With two 500 W RMS channels (bridgeable to a single 1000 W output), the FA502 delivers commanding dynamics, precision, and effortless control across the full frequency range.
More than just raw power, the FA502 is about shaping a complete listening experience. Built on Hypex’s acclaimed NCORE® technology, it offers ultra‑low distortion, natural voicing, and musical transparency. Combined with advanced DSP capability—including both IIR and FIR filters—the FA502 gives you the freedom to design crossovers, fine‑tune system response, and adapt to any acoustic environment with surgical accuracy.
The FA502 provides extensive connectivity, with analog balanced XLR in/out, analog unbalanced RCA, plus digital AES, S/PDIF, and optical Toslink inputs. This wide range of options ensures seamless integration with virtually any analog or digital audio source.
Enhance usability by pairing the Hypex FusionAmp FA502 with the Fusion Remote Kit or Fusion OLED Display, enabling full remote‑control functionality. Enjoy the convenience of adjusting and managing your audio system effortlessly from across the room
Whether you’re building a high‑end 2‑way monitor, a studio reference loudspeaker, or a powerful home system, the FA502 provides the foundation for audio that feels alive. It’s the perfect choice for those who demand both technical excellence and an inspiring connection to sound.
The FA502 has two 500 Wrms Hypex N core amplifiers which can also be bridged to form one powerful 1000 Wrms amplifier.
Dimensions: 380 * 150 x 90 mm
Weight: 2150 gram
Specifications
Electrical
- Output Power (4Ω): 2 x 500W, (1 x 1000W in BTL)
- Output Power (8Ω): 2 x 350W, (1 x 1200W in BTL)
- Inputs: AES/EBU, Optical, RCA, SPDIF, XLR
- Mains voltage input: 100-120Vac / 200-240Vac ±10%
Connections
- Analogue balanced XLR in and through
- Analogue unbalanced RCA input
- Digital AES in and through
- Digital S/PDIF in and through
- Digital Optical TosLink input
- USB 2.0 configuration interface
Features
- 1 channel / 2-way
- FIR filters now included 4500 taps for the input channel and 1500 taps per output channel
- 15 biquads per amplifier
- Three selectable presets for filters
- Source selection
- Signal detect
- Auto shutdown
- BTL capable
- Clip protect
- Thermal protect
- Filter protection
What is included in the box:
- The Hypex FusionAmp FA502
- A printed copy of the user guide
- Speaker connection cables
Available Accessories
Hypex Filter Design (HFD) is also available for free download at the Hypex website along with up to date manuals and firmware.
