Description

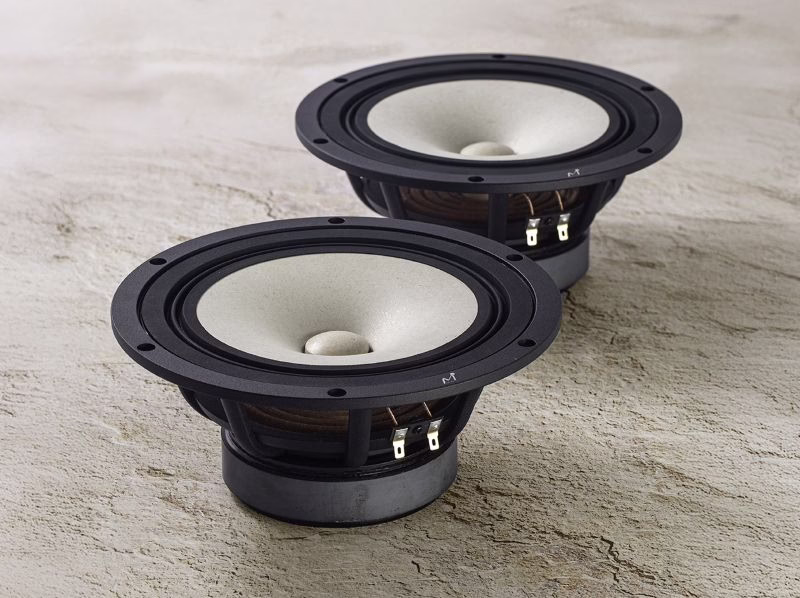

The Markaudio MA200‑P Mica is a 200 mm wide‑range driver designed for builders who want the scale and authority of a large cone, but without sacrificing the coherence and natural midrange Markaudio drivers are known for. This new P‑Mica version uses a paper cone reinforced with mica, giving it greater stiffness and improved breakup control compared to the earlier MA200‑M Multi. The result is a driver that sounds cleaner, more controlled, and more articulate across the entire band.
The MA200‑P Mica has been engineered to deliver a smooth, even midband, a more refined top end, and a tighter, more accurate low‑frequency response. The mica‑reinforced cone helps maintain composure at higher excursions, while the low‑distortion motor and long‑stroke suspension give the driver the ability to move air with confidence. This makes it a strong choice for larger full‑range enclosures, wide‑baffle designs, or 2‑way systems where the MA200 can be used as a high‑performance mid‑bass.

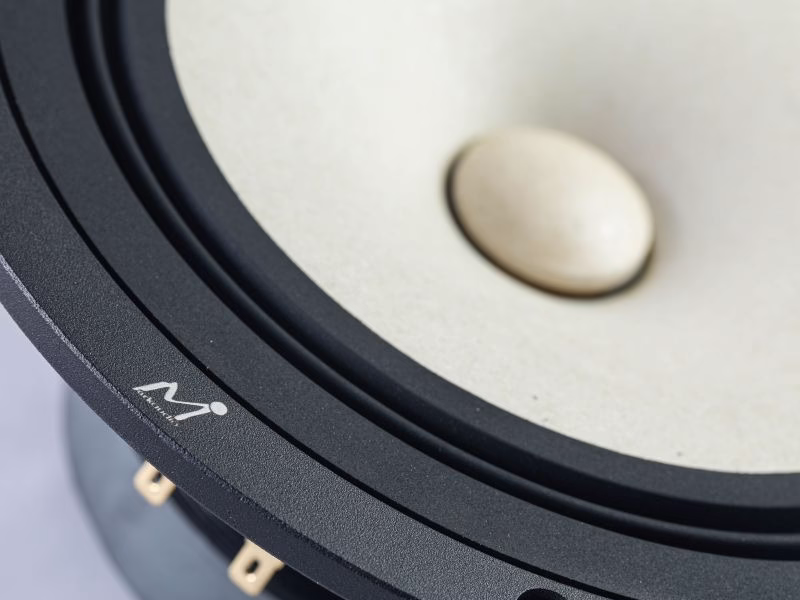

A carefully shaped surround and shallow cone geometry give the MA200‑P Mica surprisingly wide dispersion for a driver of this size, helping it maintain good imaging and off‑axis balance. The vented polymer basket improves airflow around the motor, reducing compression and keeping distortion low even at higher playback levels.
With an F₀ of 33 Hz, VAS of 80 L, and sensitivity of 90.5 dB, the MA200‑P Mica is well suited to medium and large vented enclosures, transmission lines, and wide‑baffle designs. Its tonal balance is natural and unforced, with a slightly warm lower midrange and a clean, open upper band that avoids the glare sometimes associated with large full‑range drivers.
For builders looking for a big, effortless sound with the coherence of a single‑driver system, the MA200‑P Mica offers a compelling blend of scale, refinement, and technical performance.
Key Features
- 200 mm wide‑range driver with natural, balanced voicing
- Mica‑reinforced paper cone for improved stiffness and reduced breakup

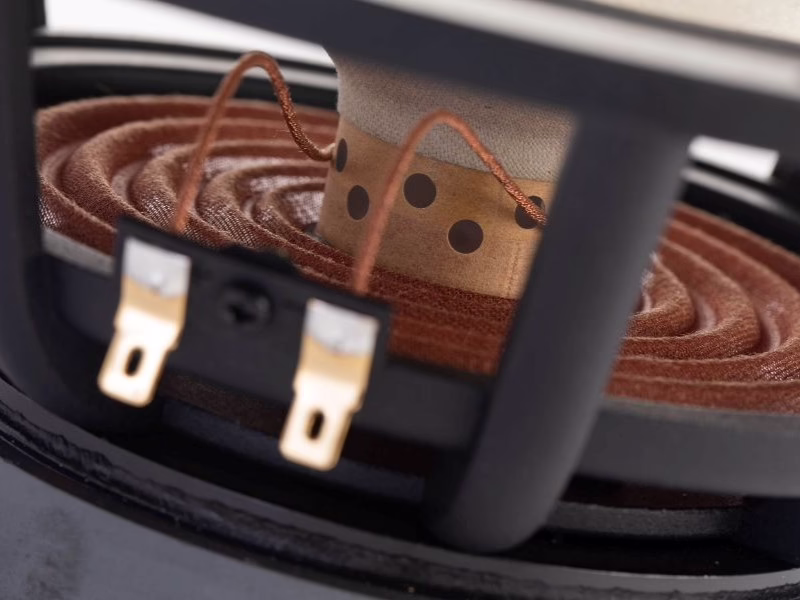

- Low‑distortion motor with long‑stroke suspension
- Progressive‑rate spider for controlled excursion

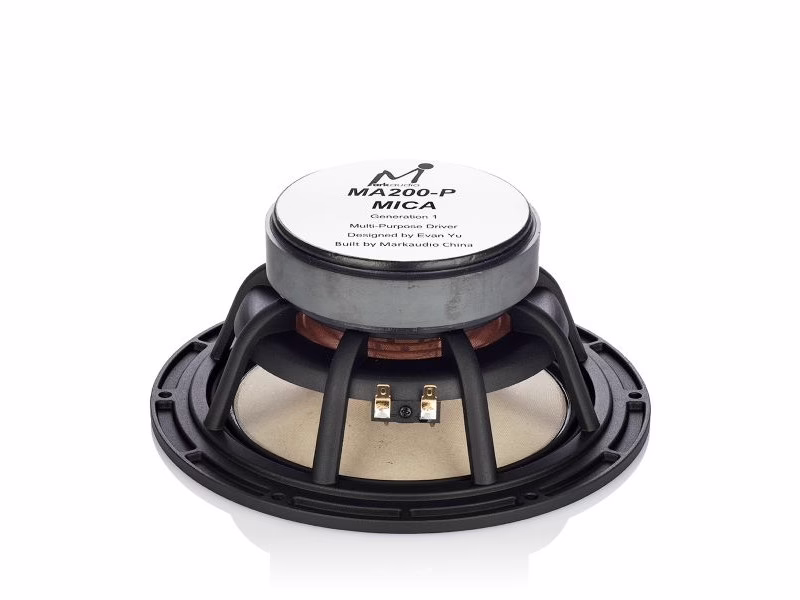

- Vented polymer basket for improved airflow and reduced compression
- Wide dispersion for a driver of this size
- Smooth, refined treble and natural midrange presentation
- Ideal for large full‑range or 2‑way designs
Core Specifications
- Impedance: 8 Ω
- F₀: 33 Hz
- VAS: 80.2 L
- Qts: 0.41
- Sensitivity: 90.5 dB (2.83 V/1 m)
- Cone: Paper with mica reinforcement
- Magnet: Ferrite
- Basket: Reinforced polymer
- Power handling: 30 W nominal / 60 W max
Data Sheet
DIY speaker cabinet plans
Most of the plans for the MA200-M Multi should work which you can find here. Below is a list of speaker cabinet plans for the MA200-P Mica
Nanda Devi MA200P-Alpair12P compoundMLTL
MA200P large vented box standmount March26
Portia MkII MA200P classic vented
PensilMA200P -Imperial March26
MA200P wide baffle floorstander March26
Nanga Parbat MkII MA200P MLTL March26
MA200P Pi-Align vented box standmount March26
