Description

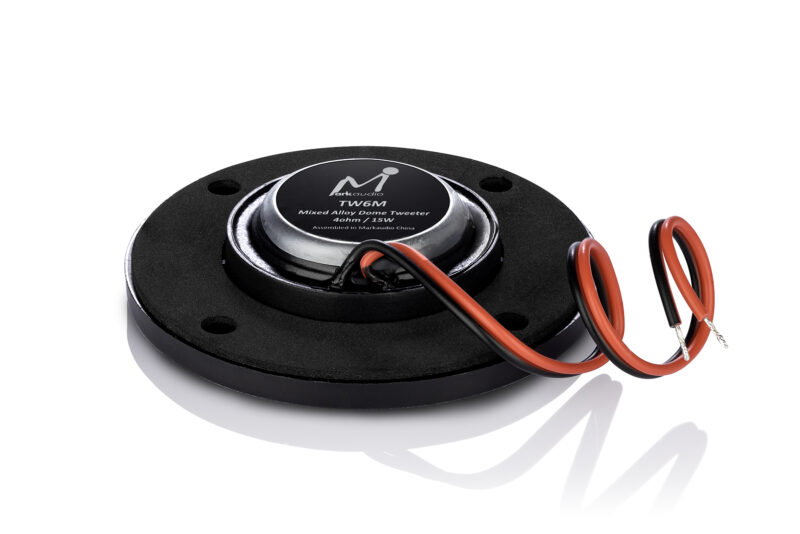

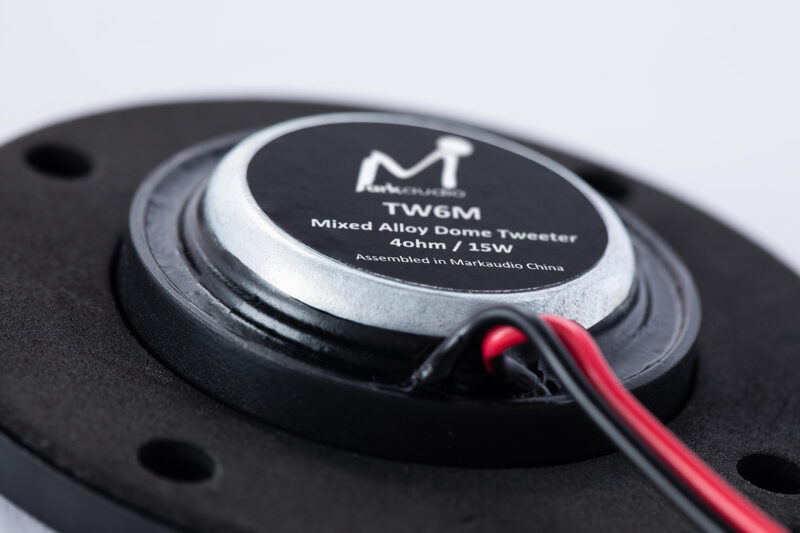

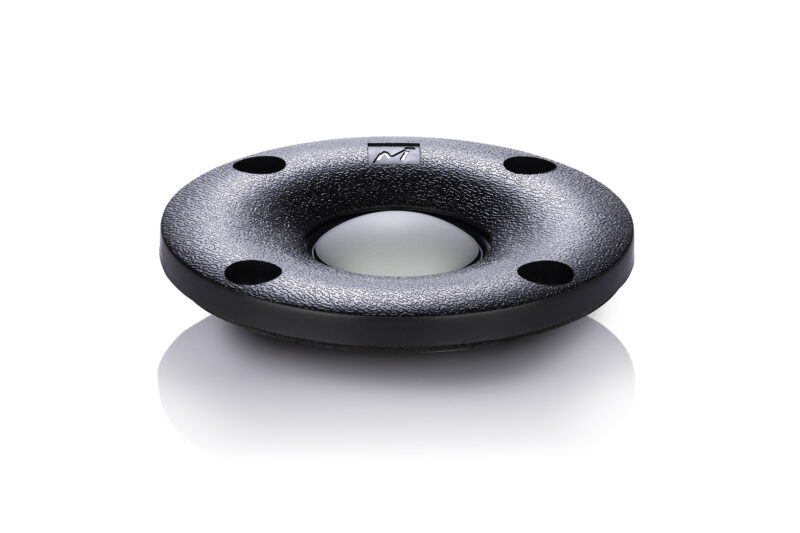

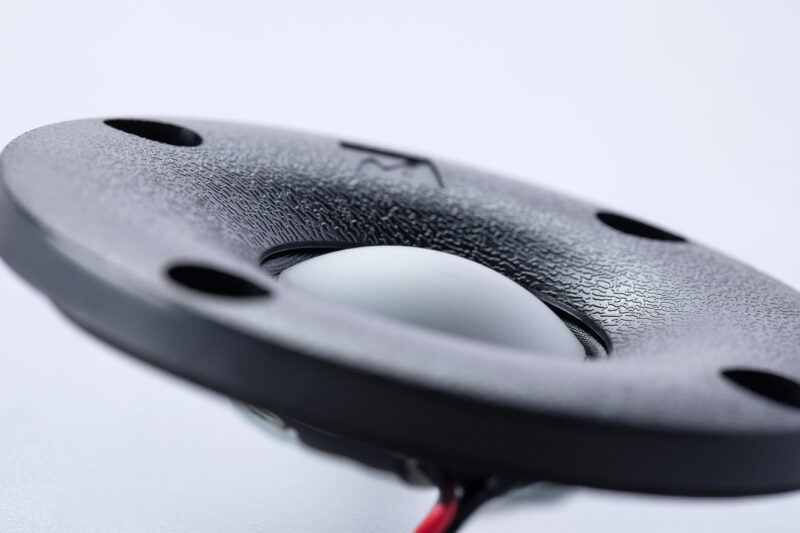

The Markaudio TW-6 tweeter is a precision-engineered metal dome tweeter designed for DIY speaker builders, audio designers, and enthusiasts seeking extended treble response, low distortion, and seamless system integration. With a 25mm aluminum diaphragm, ferrofluid-damped voice coil, and a custom polymer frame, the TW-6 delivers crisp, articulate highs with minimal coloration and excellent control.

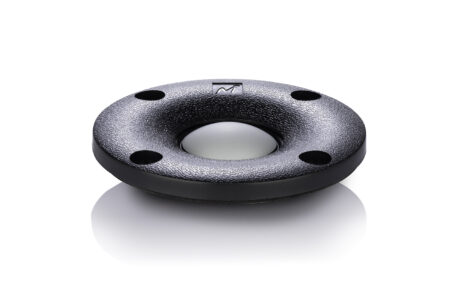

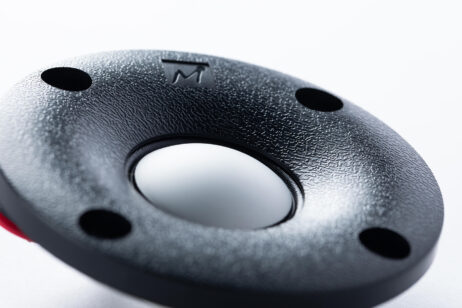

Unlike many tweeters that rely on a central phase shield, the TW-6 uses a built-in waveguide contour to shape dispersion—avoiding diffraction artifacts and preserving the dome’s direct radiation. This design aligns with high-end principles, offering clean off-axis response without obstructive structures.
Seamless Integration with Markaudio Full-Range Drivers
The TW-6 tweeter is specifically voiced and engineered to complement Markaudio’s wideband drivers such as the MA200, CHR120, Alpair 12P, and CHN-110. Its dispersion geometry, tonal balance, and crossover flexibility make it an ideal match for 2-way systems built around these units. Key integration benefits include:
- Matched dispersion: The waveguide contour mirrors the off-axis behavior of Markaudio full-range cones, ensuring smooth transitions and coherent imaging.
- Extended bandwidth: With a frequency range from 2.5 kHz to 30 kHz, the TW-6 allows flexible crossover placement above the natural roll-off of wideband drivers.
- Shared design philosophy: Like its full-range counterparts, the TW-6 prioritizes low mechanical noise, natural voicing, and minimal coloration—making it a sympathetic partner in multi-driver builds.
Whether you’re building a high-resolution 2-way monitor or refining a multi-driver system, the TW-6 offers clarity, control, and compatibility in a sleek, recessed-mount package.
Key Features
- 25mm aluminum dome diaphragm for extended treble
- Ferrofluid cooling improves power handling and reduces distortion
- Waveguide contour avoids phase shield artifacts

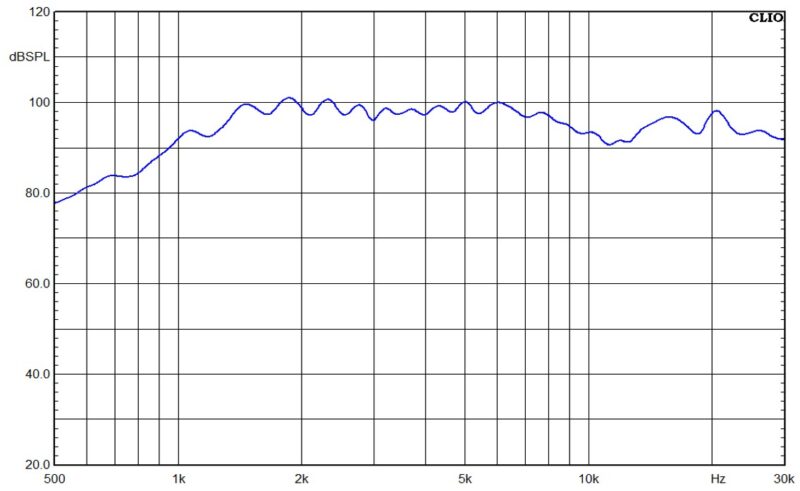

- Wide frequency response: 2.5 kHz – 30 kHz
- High sensitivity: 98 dB (2.83V/1m)

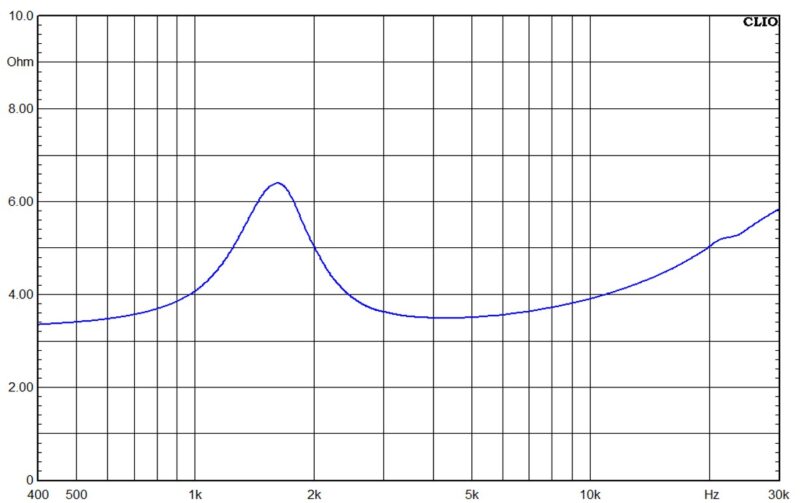

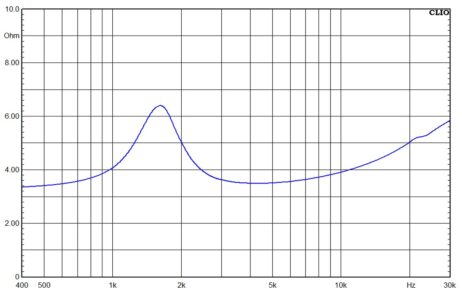

- Nominal impedance: 4 ohms
- Compact frame with recessed mountings
- Ideal pairing with MA200, CHR120, Alpair 12P, CHN-110
Datasheet
Cabinet designs
As usual Scott Lindgren has come up with some pretty cool designs that utilise this new tweeter, more will follow
MA200M-TW6 vented floorstander
MA200M-CHR120-TW6 floorstander
MA200M-CHR90-TW6 3-way standmount
MA200M-CHN50-TW6 2.5way standmount
MA200M-CHN50-TW6 3way standmount
CHR120-TW6 vented floorstander
Parameters
| RE | 5.4 Ohms |
|---|---|
| FS | 38.4 |
| SD | 147.41 |
| VAS | 45.3 |
| CMS | 1.468m M/N |
| MMD | 10.658 g |
| MMS | 11.687 g |
| BL | 5.308 T/M |
| QMS | 1.44 |
| QES | 0.541 |
| QTS | 0.393 |
| LE | 49.3 uH |
| SPL | 88.6 dB |
| POWER (NOMINAL) | 40 Watts |
| X MAX | 8.5 mm (one way) |
| colour | Paper |
